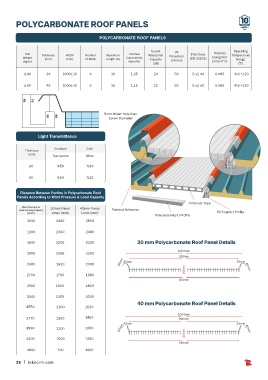

POLYCARBONATE ROOF PANELS

POLYCARBONATE ROOF PANELS

Sound UV Operating
Unit Thickness Width Number Maximum Thermal Absorption Fire Class Thermal Temperature
Weight (mm) (mm) of Walls Length (m) Conductivity Capacity Protection (EN 33501) Elongation Range
(kg/m) (W/m²K) (micron) (mm/m°C)
(dB) (°C)
3,00 30 1000±10 6 16 1,35 20 50 B s2 d0 0,065 -40/+120

3,60 40 1000±10 6 16 1,15 22 50 B s2 d0 0,065 -40/+120

75
85
5mm Wider Hole than
Screw Diameter
30
40

Light Transmittance

Standard Color
Thickness
(mm)
Transparent White
30 %59 %39

40 %50 %32

Distance Between Purlins in Polycarbonate Roof
Panels According to Wind Pressure & Load Capacity
Anti-Dust Tape
Wind Pressure & 30mm Panel 40mm Panel
Load Carrying Capacity Painted Galvanize
(N/m²) Lmax (mm) Lmax (mm) PC Support Profile
Polycarbonate U Profile
1000 2480 2560

1200 2390 2480
1600 2205 2320 30 mm Polycarbonate Roof Panel Details

1000mm
1900 2065 2200
915mm
40mm 30mm
2400 1830 2000 30mm 40mm
30mm
2700 1700 1880
930mm
2900 1600 1800

3340 1400 1630
40 mm Polycarbonate Roof Panel Details
3550 1300 1530
1000mm
3770 1200 1450 915mm
3990 1100 1360 40mm 30mm 30mm 40mm

4200 1000 1280 40mm
930mm
4900 700 1000
