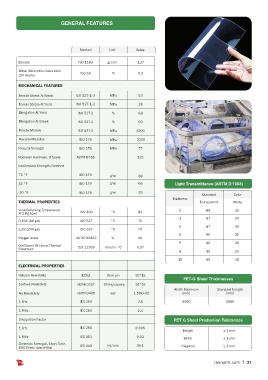

Page 3 - PET-G Sheets

GENERAL FEATURES

Method Unit Value

Density ISO 1183 g/cm³ 1,27
Water Absorption Saturation ISO 62 % 0,2
(24 Hours)

MECHANICAL FEATURES

Tensile Stress At Break ISO 527-1,-2 MPa 53
Tensile Stress At Yield ISO 527-1,-2 MPa 26
Elongation At Yield ISO 527-2 % 4,8

Elongation At Break ISO 527-2 % 50
Tensile Moduls ISO 527-2 MPa 2200

Flexural Modulus ISO 178 MPa 2100
Flexural Strength ISO 178 MPa 77

Rockwell Hardness, R Scale ASTM D785 115
lzod lmpact Strength, Notched

73 °F ISO 179 j/m 88
32 °F ISO 179 j/m 66 Light Transmittance (ASTM D 1003)

-30 °F ISO 179 j/m 39 Standard Color
Thickness
THERMAL PROPERTIES Transparent White

Vicat Softening Temparature ISO 306 °C 83 2 88 30
At 1 Kg Load
3 87 30
0,455 (66 psi) ISO 527 °C 74
4 87 30
1,82 (264 psi) ISO 527 °C 70
5 86 25
Oxygen Index ASTM D2863 % 26
6 86 25
Coefficient Of Linear Thermal
Expansion ISO 11359 mm/m -°C 0,07
8 85 20
10 85 15
ELECTRICAL PROPERTIES

Volume Resistivity IEC93 Ohm.cm 10*15
PET-G Sheet Thicknesses
Surface Resistivity ASTM D257 Ohms/square 10*16
Width Maximum Standard Length
Arc Resistivity ASTM D495 sec 1.58E+02 (mm) (mm)
1 kHz IEC 250 2.6 2050 3050
1 MHz IEC 250 2.4

Dissipation Factor PET G Sheet Production Tolerances
1 kHz IEC 250 0.005
Length ± 2 mm
1 MHz IEC 251 0.02 Width ± 1 mm
Dielectric Strength, Short Time, IEC 243 kV/mm 16.1 Diagonal ≤ 3 mm
500 V/sec rate of-rise
