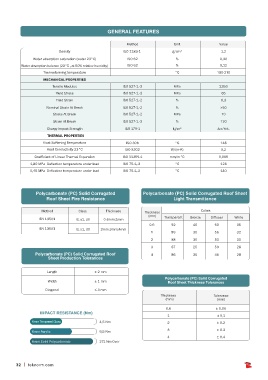

Page 3 - Polycarbonate (PC) Solid Corrugated Roof Sheets

GENERAL FEATURES

Method Unit Value
Density ISO 1183-1 g/cm³ 1,2
Water absorption saturation (water 23°C) ISO 62 % 0,30
Water absorption balance (23°C , at 50% relative humidity) ISO 62 % 0,12
Thermoforming temperature °C 180-210
MECHANICAL PROPERTIES
Tensile Modulus ISO 527-1,-2 MPa 2350
Yield Stress ISO 527-1,-2 MPa 65
Yield Strain ISO 527-1,-2 % 6,3
Nominal Strain At Break ISO 527-1,-2 % >50
Stress At Break ISO 527-1,-2 MPa 70
Strain At Break ISO 527-1,-2 % 120
Charpy Impact Strength ISO 179-1 kj/m² Ara Yok.
THERMAL PROPERTIES
Vicat Softening Temperature ISO 306 °C 148
Heat Conductivity 23°C ISO 8302 W/(m-K) 0,2
Coefficient of Linear Thermal Expansion ISO 11359-1 mm/m°C 0,065
1,80 MPa Deflection temperature under load ISO 75-1,-2 °C 128
0,45 MPa Deflection temperature under load ISO 75-1,-2 °C 140

Polycarbonate (PC) Solid Corrugated Polycarbonate (PC) Solid Corrugated Roof Sheet
Roof Sheet Fire Resistance Light Transmittance

Method Class Thickness Thickness Colors
(mm) Transparent
EN 13501 B, s1, d0 0.6mm;1mm Bronze Diffuser White
0.6 92 40 60 35
EN 13501 B, s1, d0 2mm:3mm:4mm
1 89 35 56 32
2 88 30 53 30
3 87 25 50 28
Polycarbonate (PC) Solid Corrugated Roof 4 86 25 46 28
Sheet Production Tolerances

Length ± 2 mm
Polycarbonate (PC) Solid Corrugated
Width ± 1 mm Roof Sheet Thickness Tolerances
Diagonal ≤ 3 mm
Thickness Tolerance
(mm) (mm)

0.6 ± 0.06
IMPACT RESISTANCE (Nm)
1 ± 0,1
6mm Tempered Glass 4,5 Nm 2 ± 0.2

6mm Acrylic 9,5 Nm 3 ± 0.3
4 ± 0.4
6mm Solid Polycarbonate 271 Nm Over
