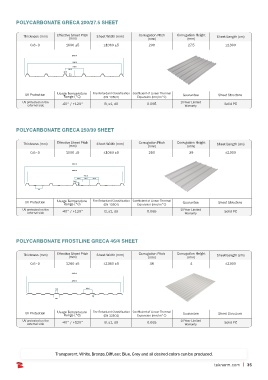

Page 6 - Polycarbonate (PC) Solid Corrugated Roof Sheets
P. 6
POLYCARBONATE GRECA 200/27.5 SHEET
Thickness (mm) Effective Sheet Pitch Sheet Width (mm) Corrugation Pitch Corrugation Height Sheet Length (cm)
(mm) (mm) (mm)
0.6–3 1000 ±5 ≤1060 ±5 200 27.5 ≤1300
1060.0
1000.0
200.0
100.0
20.0
27.5
UV Protection Usage Temperature Fire Retardant Classification Coefficient of Linear Thermal Guarantee Sheet Structure
Range (°C) (EN 13501) Expansion (mm/m°C)
UV protected on the -40° / +120° B, s1, d0 0.065 10-Year Limited Solid PC
external side Warranty
POLYCARBONATE GRECA 250/39 SHEET
Thickness (mm) Effective Sheet Pitch Sheet Width (mm) Corrugation Pitch Corrugation Height Sheet Length (cm)
(mm) (mm) (mm)
0.6–3 1000 ±5 ≤1060 ±5 250 39 ≤1300
1060.0
1000.0
250.0
90.0 70.0 90.0
25.0
39.0
70
UV Protection Usage Temperature Fire Retardant Classification Coefficient of Linear Thermal Guarantee Sheet Structure
Range (°C) (EN 13501) Expansion (mm/m°C)
UV protected on the -40° / +120° B, s1, d0 0.065 10-Year Limited Solid PC
external side Warranty
POLYCARBONATE FROSTLINE GRECA 46/4 SHEET
Thickness (mm) Effective Sheet Pitch Sheet Width (mm) Corrugation Pitch Corrugation Height Sheet Length (cm)
(mm) (mm) (mm)
0.6–3 1260 ±5 ≤1360 ±5 46 4 ≤1300
1360.0
1260.0
16.8 46.0
4.0
30.2
UV Protection Usage Temperature Fire Retardant Classification Coefficient of Linear Thermal Guarantee Sheet Structure
Range (°C) (EN 13501) Expansion (mm/m°C)
UV protected on the -40° / +120° B, s1, d0 0.065 10-Year Limited Solid PC
external side Warranty
Transparent, White, Bronze, Diffuser, Blue, Grey and all desired colors can be produced.
teknorm.com | 35
