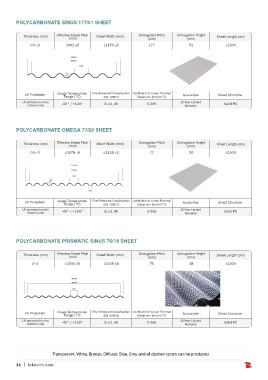

Page 5 - Polycarbonate (PC) Solid Corrugated Roof Sheets
P. 5
POLYCARBONATE SINUS 177/51 SHEET
Thickness (mm) Effective Sheet Pitch Sheet Width (mm) Corrugation Pitch Corrugation Height Sheet Length (cm)
(mm) (mm) (mm)
0.6–3 1062 ±5 ≤1150 ±5 177 51 ≤1300
1150.0
1062.0
177.0
51.0
UV Protection Usage Temperature Fire Retardant Classification Coefficient of Linear Thermal Guarantee Sheet Structure
Range (°C) (EN 13501) Expansion (mm/m°C)
UV protected on the -40° / +120° B, s1, d0 0.065 10-Year Limited Solid PC
external side Warranty
POLYCARBONATE OMEGA 77/20 SHEET
Thickness (mm) Effective Sheet Pitch Sheet Width (mm) Corrugation Pitch Corrugation Height Sheet Length (cm)
(mm) (mm) (mm)
0.6–3 ≤1078 ±5 ≤1135 ±5 77 20 ≤1300
1135.0
1078.0
77.0
20.0
25.0
UV Protection Usage Temperature Fire Retardant Classification Coefficient of Linear Thermal Guarantee Sheet Structure
Range (°C) (EN 13501) Expansion (mm/m°C)
UV protected on the -40° / +120° B, s1, d0 0.065 10-Year Limited Solid PC
external side Warranty
POLYCARBONATE PRISMATIC SINUS 76/18 SHEET
Thickness (mm) Effective Sheet Pitch Sheet Width (mm) Corrugation Pitch Corrugation Height Sheet Length (cm)
(mm) (mm) (mm)
3–4 ≤1000 ±5 ≤1045 ±5 76 18 ≤1300
1045.0
1000.0
76.0
UV Protection Usage Temperature Fire Retardant Classification Coefficient of Linear Thermal Guarantee Sheet Structure
Range (°C) (EN 13501) Expansion (mm/m°C)
UV protected on the -40° / +120° B, s1, d0 0.065 10-Year Limited Solid PC
external side Warranty
Transparent, White, Bronze, Diffuser, Blue, Grey and all desired colors can be produced.
